Description

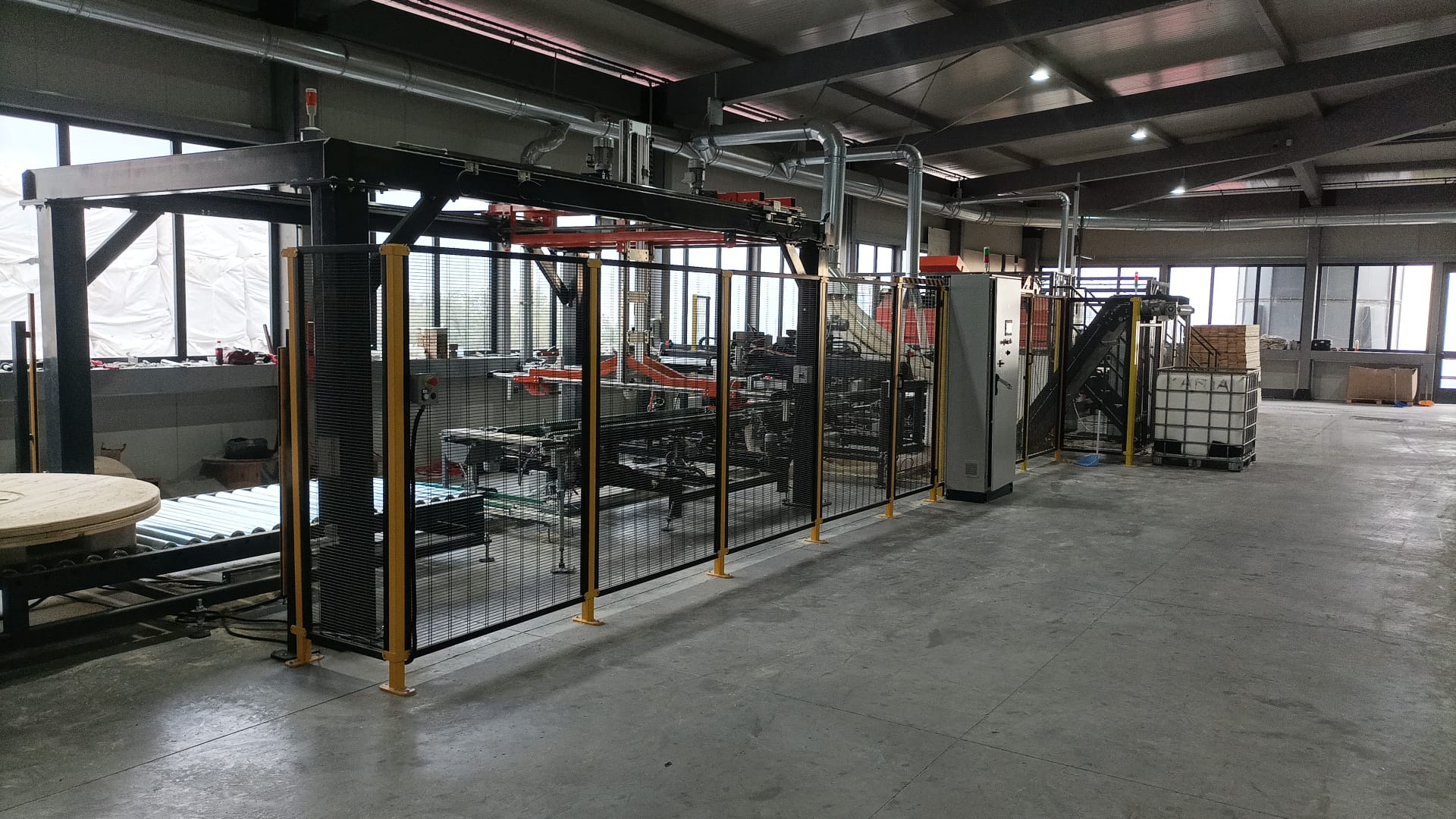

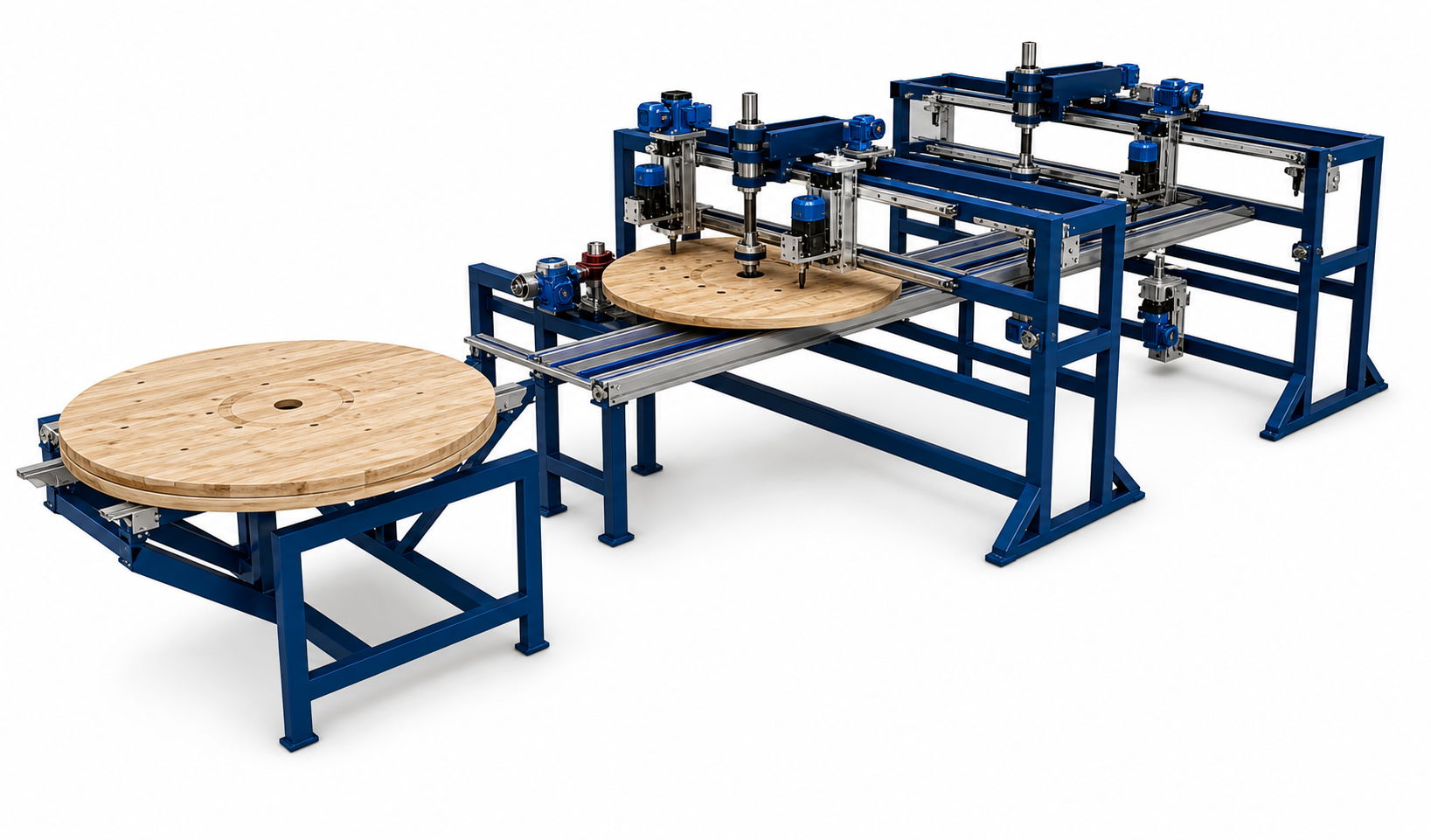

Custom-built automatic line for producing wooden flanges for cable drums, configured to client requirements. It handles flange diameters from 800 to 2400 mm and thicknesses...
Use in the production flow

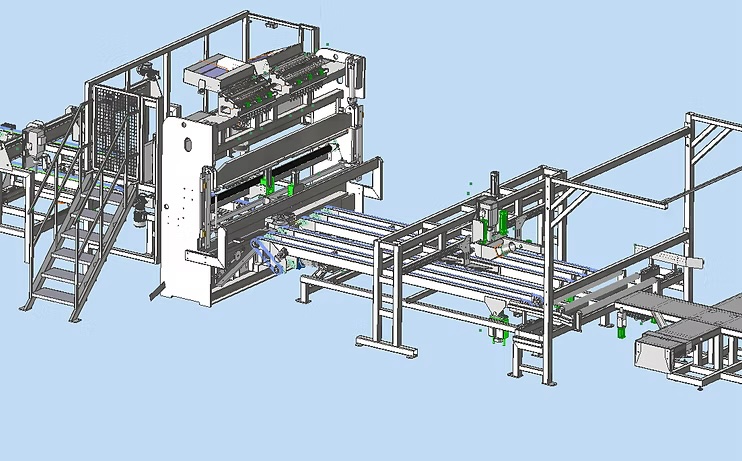

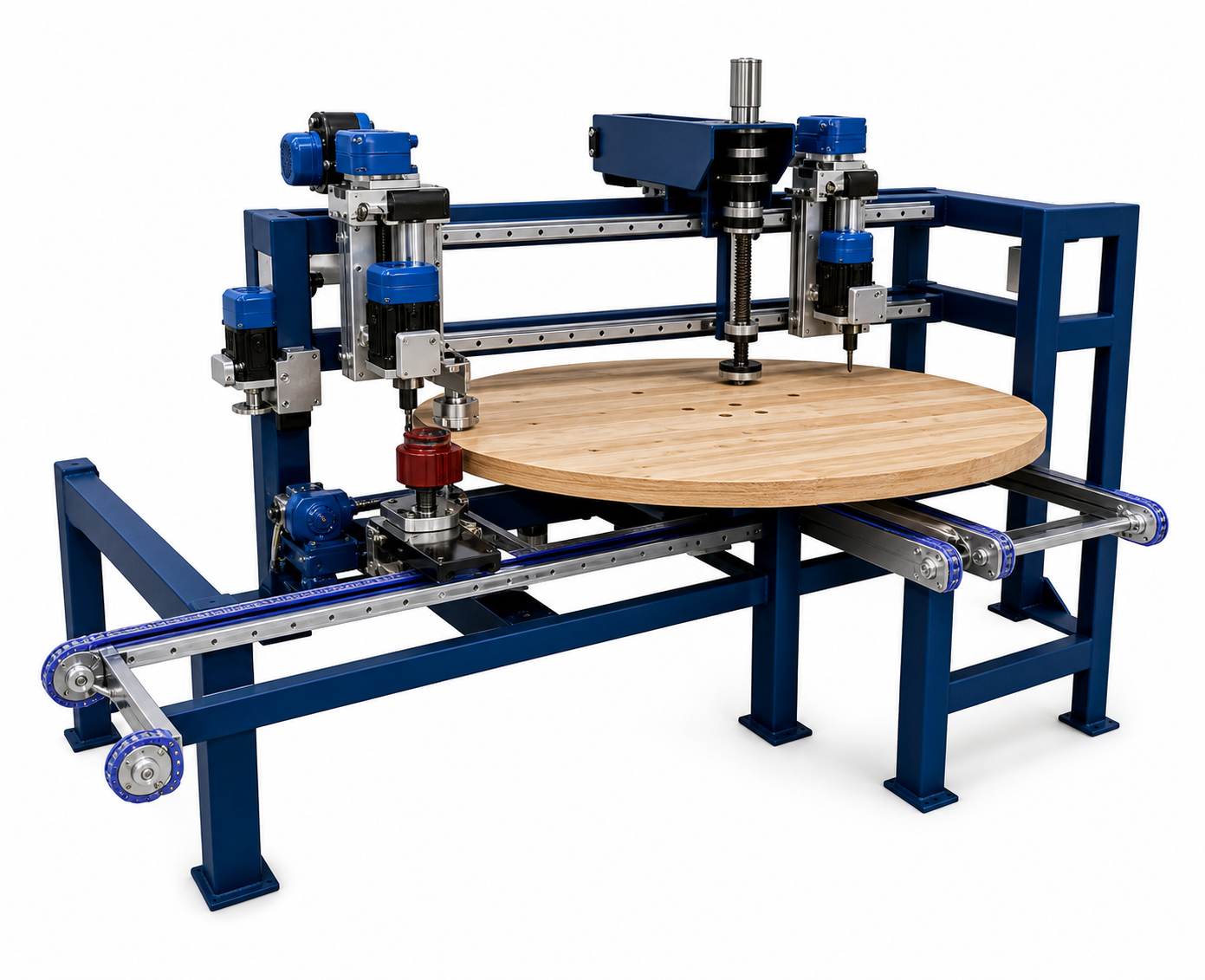

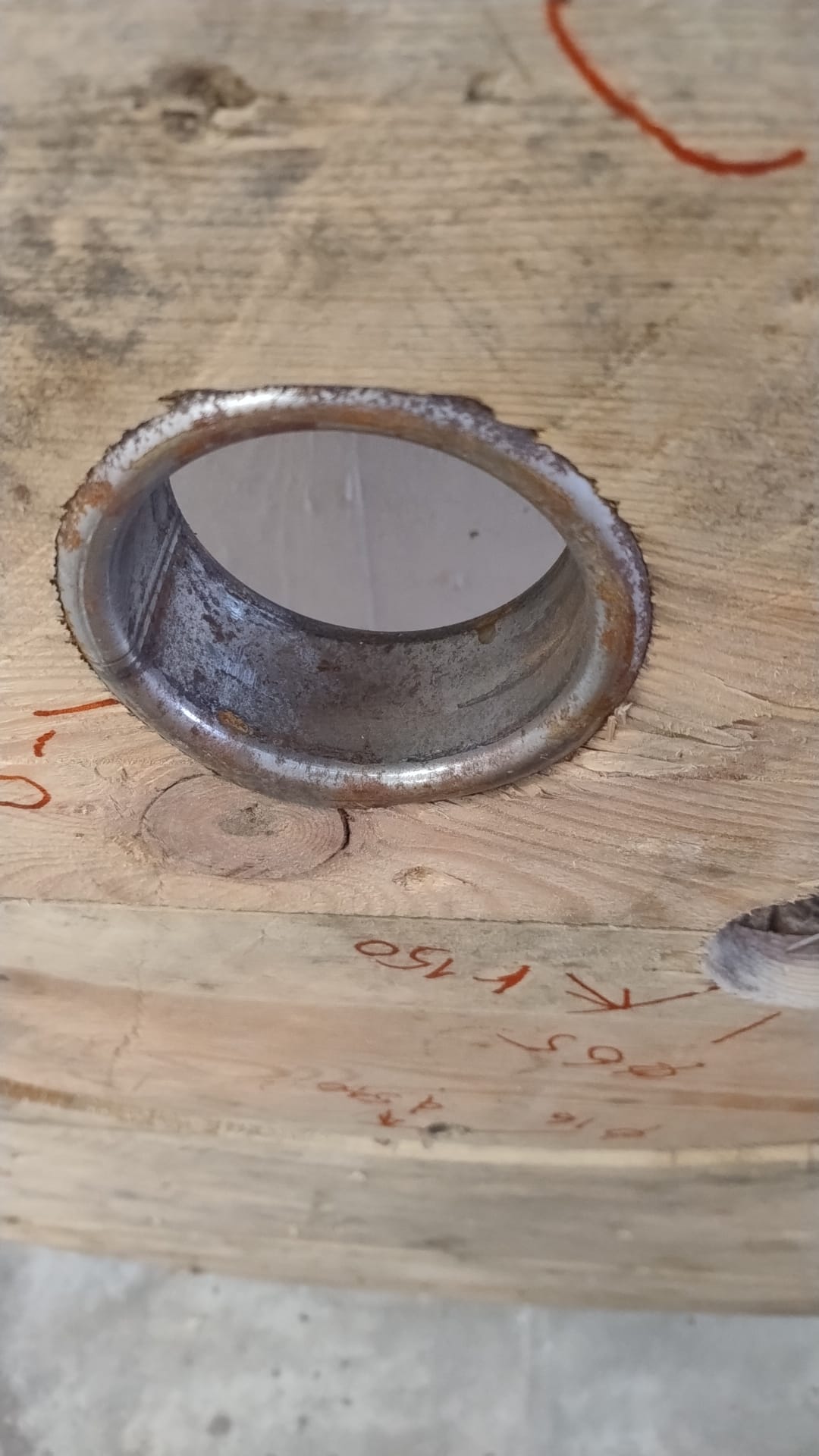

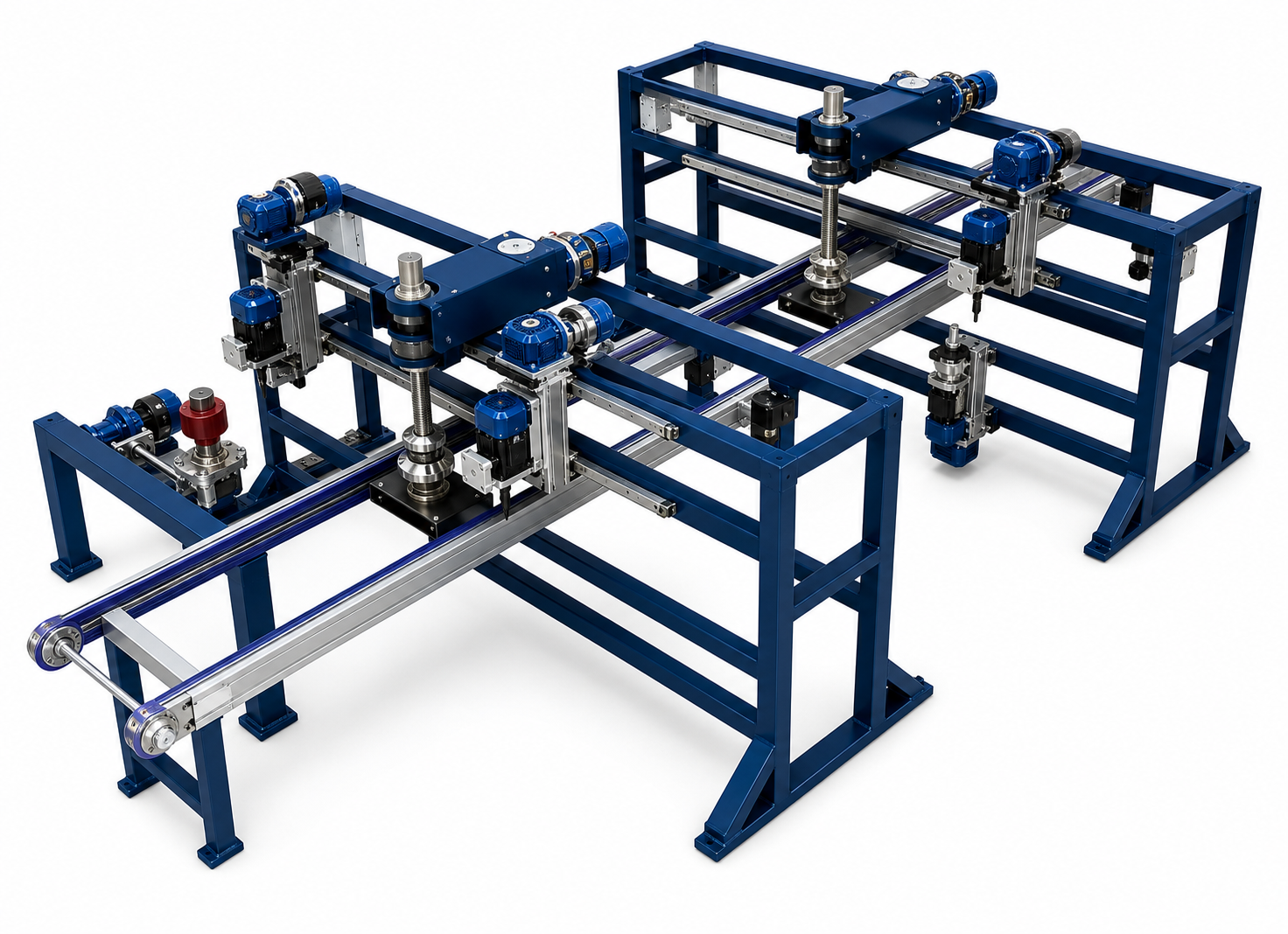

The flow includes a pre-assembly bench with pneumatic locking, laser circumference adjustment, central drilling station, hydraulic loose-nail fastening machine with mobile hammers, cutting and sanding of the groove and outer edge, waste conveyor, helical holes, tie-rod station, FITOK hot stamping, painting area, circular label milling and automatic Cartesian stacking.
Advantages
- Custom-built according to client requirements
- Wooden flanges from 800 to 2400 mm
- Flange thickness from 40 to 80 mm
- Manual or automatic adjustments managed from a touch-screen panel
- Tooling set supplied for the ordered configuration
Specifications and options

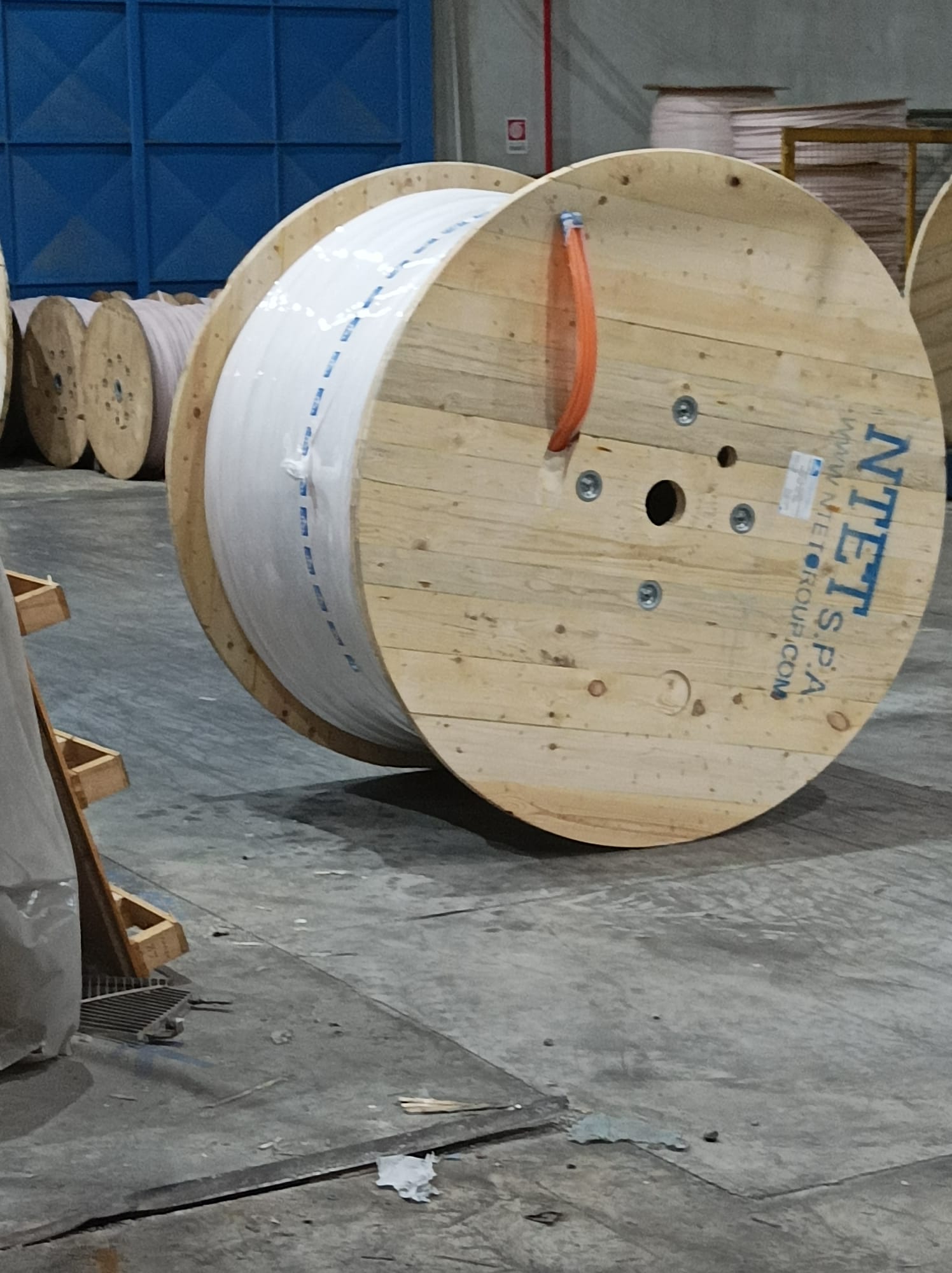

| Product | Wooden flanges for cable drums |
|---|---|
| Flange diameters | min. 800 mm / max. 2400 mm |
| Flange thickness | min. 40 mm / max. 80 mm |
| Order type | Custom-built installation according to client requirements |
| Control | Manual or automatic adjustments from a touch-screen panel |
| Included stations | pre-assembly, drilling, nailing, cutting, sanding, helical holes, tie rod, FITOK stamping, painting, label milling, stacking |
Frequently asked questions
How do I choose the right machine?
We start with target capacity, product type, available space and the required automation level.
Do you provide installation and training?
Yes, projects may include commissioning, operator training and after-sales support.
Can I order parts and consumables?
Yes, we provide spare parts, consumables and recommendations for production continuity.
Can it integrate into an existing line?
We analyze the current flow and recommend the right integration configuration.

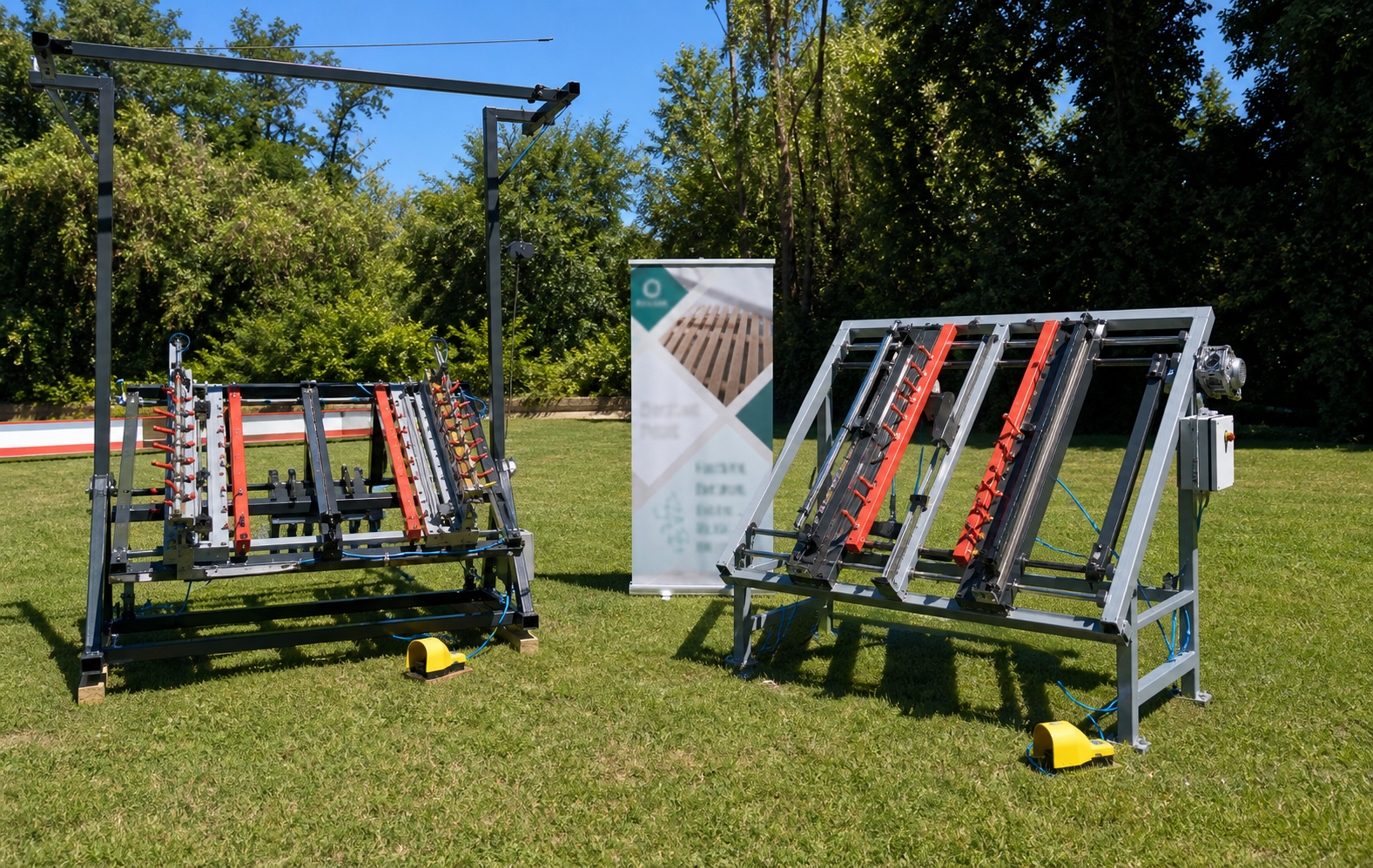

Pallet production workbenches

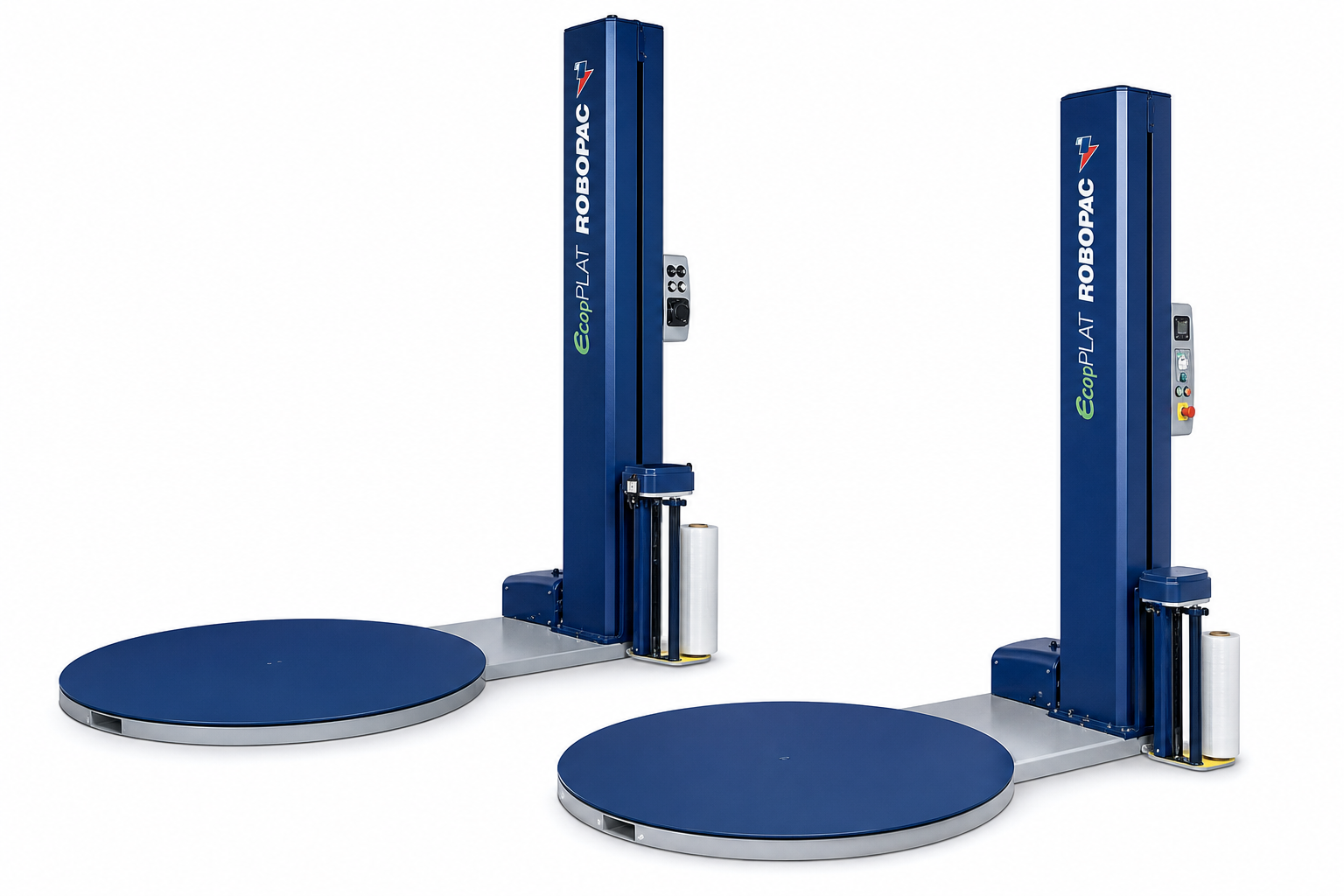

Ecoplat rotary table pallet wrapping machine

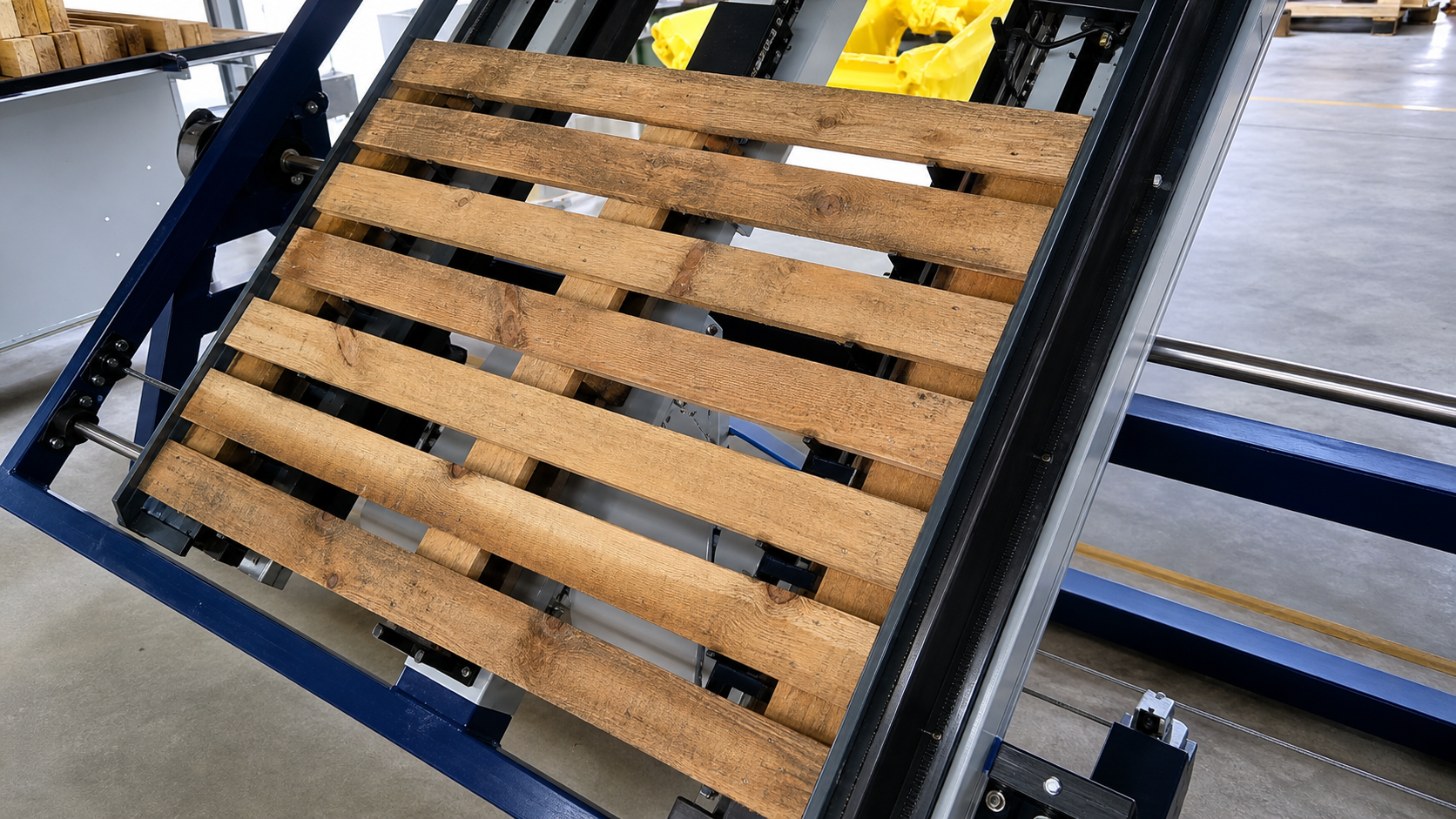

Individual machines for wooden pallet production
